When a cold room malfunctions, it can cause rapid spoilage, financial losses, and health hazards.

An emergency repair guide can help facilities respond quickly and effectively, minimizing downtime and preventing larger issues.

This article will help you identify, diagnose, and resolve cold room failures during emergencies.

1. Understanding Common Cold Room Failures

Before jumping into repairs, it’s important to know what can go wrong. Emergency issues usually stem from the following:

• Compressor failure: The compressor serves as the core component of the refrigeration cycle, if it fails, cooling ceases entirely.
• Refrigerant leaks: Without sufficient refrigerant, the system cannot maintain low temperatures.
• Thermostat malfunction: Faulty sensors can send incorrect temperature signals, leading to overcooling or insufficient cooling.
• Power failure: A blackout or internal electrical issue can shut down the system entirely.
• Fan motor failure: If evaporator or condenser fans stop working, air circulation and heat exchange are compromised.
• Blocked airflow: Ice build-up or obstruction can prevent uniform cooling.
• Door seal damage: Broken or worn-out gaskets let warm air seep in, reducing efficiency and causing condensation.

2. Initial Response: Immediate Actions

When a cold room failure is detected, swift action is critical. Follow these steps as soon as the issue is identified:

• Alert maintenance staff immediately and restrict access to minimize temperature fluctuations.
• Remove sensitive or high-value products, if possible, and transfer them to a backup cold storage unit.
• Check power supply: Ensure there’s no tripped circuit breaker, unplugged cable, or external outage.
• Inspect control panel and error codes: Many modern cold rooms display fault codes or warning indicators that help pinpoint the problem.
• Record internal temperature at the time of failure to assess how long goods will remain safe.

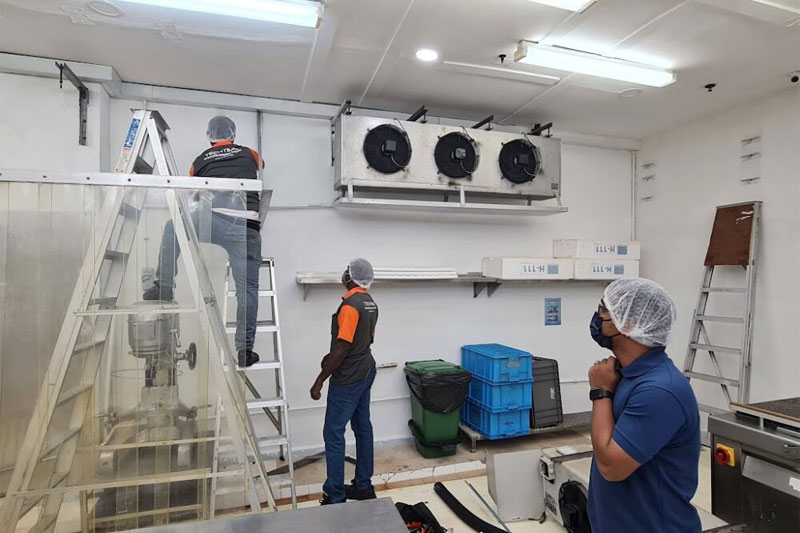

3. Diagnosing the Problem

Once the situation is stabilized, begin a quick diagnostic process:

A. Electrical Checks

• Verify voltage levels at the control board and motor contactors.
• Check for burnt fuses, loose wires, or tripped breakers.
• Verify that the thermostat is operating correctly by cross-checking its temperature reading with a handheld thermometer.

B. Mechanical Checks

• Listen for unusual noises such as hissing (leaks), grinding (fan motor), or humming (locked compressor).
• Feel the compressor—if it’s hot and not running, it may be overheating or stuck.
• Check the fan motors to confirm they rotate freely and are not blocked by ice buildup or debris.
• Check condenser coils for dirt or blockage, which can cause overheating and pressure buildup.

C. Thermal and Airflow Checks

• Look for frost or ice buildup on evaporator coils, which could indicate poor defrost function.
• Examine door seals for cracks or misalignment.
• Ensure vents are unobstructed, allowing proper airflow across the cold room.

4. Emergency Repair Procedures

Depending on the diagnosis, take these repair steps to restore function:

A. Compressor Issues

• Reset overload protection if triggered.
• If the compressor won’t start, test the start capacitor and replace it if faulty.
• For severe issues, a backup compressor or cold room may be needed until a technician arrives.

B. Refrigerant Leaks

• Use a leak detector to find the source.
• Seal minor leaks temporarily with refrigerant sealant products.
• Call a certified technician for safe refrigerant recharging and permanent fixes.

C. Fan Motor Replacement

• Turn off power, then remove the faulty motor.
• Install a compatible replacement motor and ensure proper wiring.
• Test airflow direction and ensure there’s no vibration after reinstallation.

D. Thermostat Replacement

• Disconnect faulty thermostat and replace it with a calibrated unit.
• Set the desired temperature and allow the system to stabilize.
• Use an independent thermometer to verify accuracy.

E. Ice Build-Up or Blocked Coils

• Turn off the system and defrost manually using warm air blowers.
• Check the defrost timer and heater to ensure automatic defrost cycles are functioning.

F. Seal and Gasket Replacement

• Remove damaged gaskets and install new magnetic seals or foam strips.
• Ensure tight door closure and minimal air leakage.

5. Preventive Measures During Emergencies

If immediate repairs are not possible, consider these temporary measures to limit spoilage:

• Use portable coolers or backup storage units to transfer perishable products.
• Insulate the cold room internally with thermal blankets to preserve cold air.
• Keep doors shut as much as possible to retain internal temperature.
• Use dry ice or ice packs to provide temporary cooling.
• Monitor temperature trends every 15–30 minutes to estimate product safety.

6. When to Call a Professional Technician

While basic troubleshooting can prevent disaster, certain issues require professional help:

• Refrigerant-related repairs must be handled by certified HVAC technicians.
• Major electrical failures, especially those involving compressors and circuit boards, pose fire risks.
• Structural damage to insulated panels, roofing, or flooring compromises cold room integrity.
• If you’re unsure of the root cause, professional diagnostics may save time and money.

7. Documenting the Incident

Once the emergency is resolved:

• Document the issue, repairs, and response time.
• Note affected products and potential losses.
• Evaluate team response performance for future improvement.
• Update your maintenance logs and recovery protocols to reflect lessons learned.

8. Building an Emergency Cold Room Repair Kit

To respond quickly in future emergencies, prepare a kit with:

• Digital thermometer and temperature data logger
• Refrigerant leak detector
• Basic multimeter
• Spare fuses, wires, and connectors
• Thermostat replacements
• Door gasket and seal tape
• Fan motor replacement parts
• Flashlights and safety gloves
• Insulated thermal blankets
