Among the most critical parameters in cold room operation are temperature and humidity, factors that must be tightly regulated to maintain product quality and safety.

This article explores how temperature and humidity are monitored and controlled in cold rooms.

Temperature Control:

Temperature is the primary consideration in any cold storage application. Most cold rooms operate within a temperature range of -30°C to +15°C, depending on the product stored. Even slight deviations can compromise the quality or safety of goods. For example:

• • Perishable foods must be stored between 0°C and 5°C.
  • Frozen foods require temperatures as low as -18°C or lower.
  • Pharmaceuticals often need storage at 2°C to 8°C or below freezing.

Humidity Control:

Humidity is just as crucial as temperature. Excessive humidity can cause condensation, promote mold growth, and damage packaging materials. Low humidity can cause dehydration, especially in fresh produce or biological samples. Humidity control ensures:

• Moisture balance in fresh products.
• Prevention of corrosion in sensitive materials.
• Stability of pharmaceutical and chemical compositions.

Key Components of Temperature and Humidity Control Systems

To maintain strict control over environmental conditions, cold rooms are equipped with an integrated system comprising several key components:

1. Insulated Panels and Sealing Systems

Cold room panels are made of high-density polyurethane (PU) or polystyrene insulation, sandwiched between metal sheets. This insulation reduces thermal exchange and prevents moisture ingress. Proper sealing around doors, joints, and corners is crucial for minimizing leakage and maintaining desired conditions.

2. Refrigeration Unit

The heart of temperature control in a cold room is its refrigeration system. It generally consists of:

• Compressor: Pressurizes and circulates the refrigerant.
• Condenser: Releases heat absorbed from the cold room.
• Expansion Valve: Regulates refrigerant flow and lowers its pressure.
• Evaporator: Absorbs heat from the cold room and cools the air.

Modern systems may use variable-speed compressors and digital thermostats for energy-efficient, precise cooling.

3. Temperature Sensors and Thermostats

Digital sensors placed at strategic points inside the cold room continuously monitor temperature levels. These sensors feed data to a thermostat or controller, which adjusts the refrigeration cycle automatically to maintain the setpoint.

Alarms are triggered if temperature levels go above or below acceptable ranges, alerting operators to take corrective action.

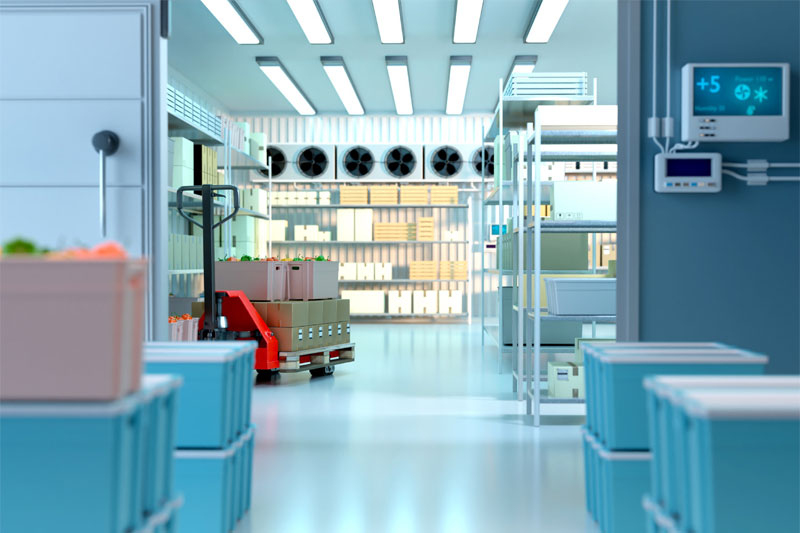

4. Humidity Control Systems

Cold room humidity can be controlled using:

• Humidifiers: Devices that add moisture to the air, often using ultrasonic or steam-based methods.
• Dehumidifiers: Equipment that removes excess moisture from the air, typically via desiccant or refrigerant-based processes.

Sensors measure relative humidity (RH), typically keeping it within the 60% to 95% range, depending on the stored goods.

5. Air Circulation Systems

Optimized airflow maintains consistent temperature and humidity across the entire cold room, with fans and air ducts evenly distributing conditioned air to eliminate hot or cold zones.

Proper airflow also reduces the risk of condensation on walls or products by maintaining balanced humidity and temperature gradients.

How the Control Process Works

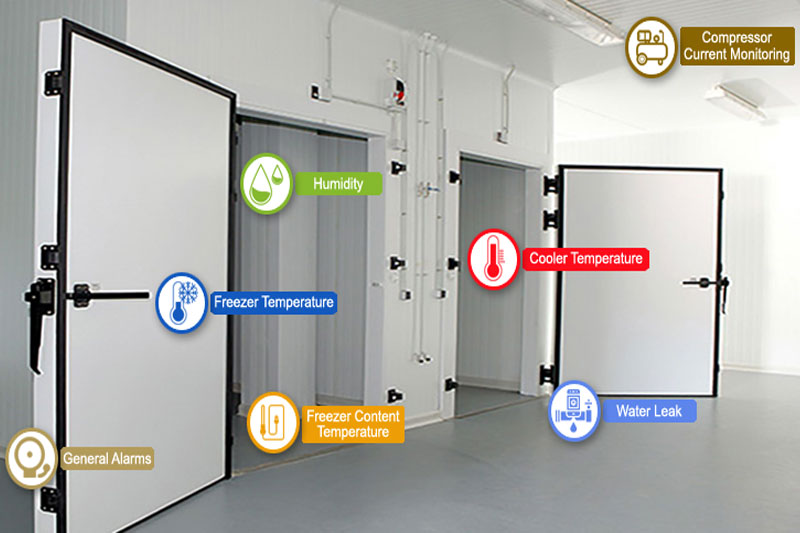

1. Real-Time Monitoring

Temperature and humidity sensors are connected to a centralized control unit or building management system (BMS). Sensors actively monitor conditions and relay real-time data to the control unit for continuous regulation.

2. Automated Adjustment

The control system compares the current values to the pre-set targets. If deviations occur, it automatically triggers adjustments. For example:

• If the temperature rises, the refrigeration unit increases its output.
• If humidity exceeds the desired level, the dehumidifier activates.
• When the air becomes too dry, the humidifier activates to restore optimal moisture levels.

3. Data Logging and Alerts

Many systems feature data logging capabilities, storing temperature and humidity trends over time. Alerts via SMS, email, or alarm systems notify personnel of system malfunctions or environmental anomalies.

This traceability is critical in industries like pharmaceuticals and food, where compliance with regulatory standards (e.g., FDA, WHO, HACCP) is mandatory.

Advanced Technologies in Cold Room Control

As cold storage requirements become more complex, advanced technologies are increasingly being used:

1. IoT Integration

Internet of Things (IoT) technology enables remote access and real-time management through cloud-based platforms. Users can:

• Adjust setpoints remotely.
• Receive real-time alerts.
• Analyze performance metrics for predictive maintenance.

2. Machine Learning and Predictive Control

Some systems now incorporate AI-based algorithms that learn from historical data to predict environmental changes and adjust control strategies proactively.

For example, if a cold room door is frequently opened during specific hours, the system may compensate in advance to maintain stability.

3. Energy-Efficient Systems

Inverter-based compressors, smart defrosting cycles, and energy recovery systems help reduce operational costs while maintaining precise control.

Challenges and Considerations

1. Door Openings

Frequent door openings lead to temperature spikes and humidity fluctuations. Air curtains, strip curtains, and fast-closing doors help mitigate these effects.

2. Load Variations

The addition of warm or moist products can disrupt environmental balance. Pre-cooling products before storage and using load sensors can help manage these changes.

3. System Redundancy

For mission-critical applications, backup systems such as secondary refrigeration units or battery-powered monitors are essential to prevent failures during power outages or equipment malfunctions.

Conclusion

Controlling temperature and humidity in cold rooms is a complex but vital task that ensures the integrity, quality, and compliance of stored products.

By combining insulation, advanced refrigeration systems, real-time sensors, and smart control technologies, modern cold rooms achieve a high level of environmental precision.
