Cold rooms are among the highest energy consumers in a facility. As electricity prices continue to rise and sustainability becomes more important, reducing energy costs in cold room operations has become a top priority.

By implementing best practices in design, equipment selection, maintenance, and day-to-day operations, businesses can significantly reduce energy expenditures while maintaining optimal temperature and humidity conditions.

This article explores strategies to minimize energy costs in cold room operations without compromising performance or product integrity.

1. Optimize Insulation and Building Envelope

1.1 High-Performance Insulation Materials

• Rigid Foam Panels: Polyurethane (PUR) and polyisocyanurate (PIR) panels deliver R-values of R-6 to R-7 per inch, reducing conductive heat transfer.
• Vacuum Insulated Panels (VIPs): Although more expensive, VIPs can achieve R-values above R-25 in very thin profiles, ideal for retrofit applications where floor and wall thickness is limited.
• Extruded Polystyrene (XPS): With an R-value of about R-5 per inch and inherent moisture resistance, XPS is well suited for floors or below-ground installations.

1.2 Minimize Thermal Bridging

• Thermal Breaks: Use stainless-steel fasteners with insulating sleeves to attach panels, reducing metal conduction.
• Continuous Insulation: Ensure insulation layers remain uninterrupted around corners and penetrations; seal gaps around piping, wiring, and door frames with closed-cell spray foam.

1.3 Proper Sealing and Vapor Barriers

• Sealant and Tapes: Apply specialized cold-room sealants and vapor barrier tapes at panel joints and penetrations.
• Moisture Management: A well-installed vapor barrier (e.g., polyethylene film) prevents condensation within wall cavities, avoiding insulation degradation and mold growth that compromise R-value.

2. Select High-Efficiency Refrigeration Equipment

2.1 Variable Speed Compressors (Inverter Technology)

• Adaptive Operation: Inverter-driven compressors modulate capacity based on real-time cooling demand rather than cycling on/off at full load, which reduces electrical spikes and improves part-load efficiency by up to 20–30 %.
• Extended Operating Range: These compressors operate efficiently even under low ambient temperatures, reducing energy consumption during milder seasons.

2.2 Efficient Condensing Units

• EC Fans: Electronically commutated (EC) condenser fans draw significantly less power than traditional AC fans and deliver better airflow control.
• Microchannel Condensers: By using smaller refrigerant channels and higher heat-transfer coefficients, these coils achieve up to 15 % lower condensing pressures compared to conventional fin-and-tube designs.

2.3 Optimize Refrigerant Selection

• Lower GWP Refrigerants: Modern HFO blends (e.g., R-448A, R-449A) can offer efficiencies comparable to or exceeding R-404A while reducing global warming potential.
• Cascade or Two-Stage Systems: For ultra-low-temperature applications, two-stage systems reduce lift on each compressor stage, improving coefficient of performance (COP).

3. Improve Airflow Management

3.1 Proper Evaporator Placement

• Even Air Distribution: Position evaporator coils to ensure uniform temperature throughout the cold room. Placing coils centrally on the ceiling and combining with high-sidewall return grilles prevents cold and warm spots.
• Air Deflectors: Install air deflectors or fans to direct cold air away from walls and racks, reducing risk of frosting and ensuring consistent setpoints.

3.2 Install Strip Curtains or Air Curtains

• Strip Curtains: PVC strip curtains at entrances minimize infiltration of warmer air when personnel or material pass through.
• Air Curtains: For high-traffic doors, warm-air curtains create an invisible barrier, reducing infiltration losses by up to 50–70 %.

3.3 Fan Control and Optimization

• EC Evaporator Fans: Like EC condenser fans, EC-driven evaporator fans adjust speed to maintain precise airflow, saving power compared to single-speed fans.
• Zoning and Multi-Fan Systems: Using multiple smaller fans with individual controls prevents overcooling during times of light load. Fans can be staged to match demand.

4. Implement Advanced Controls and Monitoring

4.1 Smart Thermostats and PLC Integration

• Setpoint Scheduling: Program temperature setbacks during off-peak hours—provided product safety won’t be compromised—to reduce compressor run-time.
• Remote Monitoring: Integrate programmable logic controllers (PLCs) with remote supervisory control and data acquisition (SCADA) systems for 24/7 visibility into setpoints, alarms, and run hours.

4.2 Real-Time Energy Management Systems

• Data Logging: Track kWh consumption, compressor cycles, and defrost cycles. Benchmarks can reveal opportunities for optimization (e.g., identifying high-energy defrost events).
• Alarms and Predictive Maintenance: Alerts for abnormal current draw, suction pressure spikes, or fan motor vibration can prompt timely intervention before energy efficiency suffers.

4.3 Variable Setpoint Strategies

• Temperature Hysteresis: Instead of tight ±0.5 °F deadbands, allow a ±1.5–2 °F hysteresis where product quality is not jeopardized. This reduces compressor short-cycling and leverages the cold room’s thermal mass.
• Nighttime Setback: For rooms storing frozen goods or products with wider safe temperature ranges, allow a temporary drift of 2–3 °F during unoccupied hours to reduce run time.

5. Optimize Defrost Cycles

5.1 Demand-Defrost Control

• Time vs. Load-Based Defrosting: Traditional timer-based defrost cycles often over-defrost, wasting energy. Demand-defrost controllers use suction pressure and coil temperature sensors to initiate defrost only when necessary.
• Defrost Frequency: Adjust defrost frequency based on ambient humidity and product load. A bi-weekly or even monthly defrost may suffice in low-humidity settings, whereas humid environments may require weekly cycles.

5.2 Hot Gas vs. Electric Defrost

• Hot Gas Defrost: Redirects high-pressure discharge gas through evaporator coils to melt frost, using waste heat from the compressor. This can be 20–30 % more efficient than electric-resistance defrost.
• Hot Water Defrost: In facilities with a central hot-water loop, using warm water to thaw coils can be more economical if gas or electric costs are high.

5.3 Optimize Defrost Termination

• Pressure or Thermostat Cut-Off: Terminate defrost immediately when sensors detect coil temperature has reached 45–50 °F, rather than relying on a fixed time. This saves energy and reduces run-on after ice melt.

6. Maintain Equipment and Perform Regular Service

6.1 Coil Cleaning and Maintenance

• Condenser Coil Cleaning: A dirty condenser can increase condensing pressure by 10–20 %, reducing efficiency. Schedule coil cleaning every 3–6 months (more often in dusty or greasy environments).
• Evaporator Coil Inspection: Check for frost buildup, corrosion, and airflow obstructions. Clean every 6–12 months to maintain optimal heat exchange.

6.2 Refrigerant Charge Verification

• Proper Superheat and Subcooling: An undercharged system can’t meet load, causing compressors to run longer. An overcharged system can flood back, increasing power draw. Technicians should verify refrigerant charge quarterly, especially after service calls or opening the system.

6.3 Lubrication and Component Inspection

• Fan Motors and Bearings: Well-lubricated bearings reduce friction and motor amperage draw. Inspect belts, pulleys, and fans quarterly for wear.
• Compressor Efficiency Checks: Monitor amperage draw and oil levels. Replace worn gaskets or valves promptly—worn components can increase power consumption by up to 15 %.

7. Upgrade Lighting and Ancillary Systems

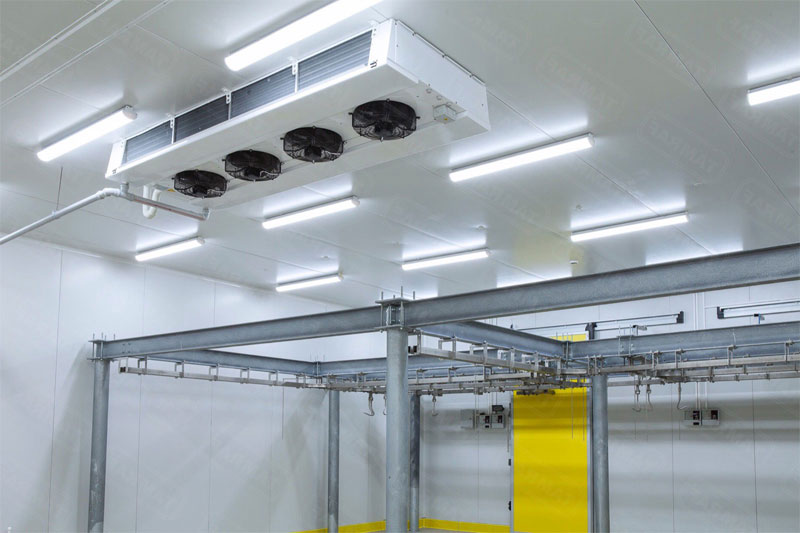

7.1 LED Lighting Fixtures

• Low Heat Emission: LED fixtures consume approximately 75 % less energy than incandescent bulbs and 40 % less than fluorescent fixtures. Since LEDs produce very little heat, they ease the cooling load on the refrigeration system.
• Motion Sensors and Dimmers: Install motion-activated controls so lights operate only when staff are present, particularly in large storage spaces where lighting needs are intermittent.

7.2 Energy-Efficient Door Controllers

• Automatic Door Closers: Mechanical closers ensure doors don’t remain ajar. Pneumatic or hydraulic closers can provide consistent closing force in cold environments.
• Strip Curtains and Air Locks: Beyond reducing infiltration, these help maintain interior conditions when doors open, minimizing the quantity of warm air entering.

7.3 Heat Recovery Systems

• Reclaim Reject Heat: Modern condensing units reject a large portion of energy as heat. Installing a heat-recovery coil (for water heating or glycol loops) lets facilities repurpose this heat for employee showers, sanitation, or process heating, offsetting other utility costs.

8. Case Studies and Expected Savings

Insulation Upgrade:

A distribution center replaced 4-inch standard PU panels (R-22) with 6-inch PIR panels (R-36). Annual energy consumption for the cold room dropped by 12 %, equating to $18,000 in savings on a $150,000 annual refrigeration energy bill.

Variable Speed Compressor Retrofit:

A mid-sized grocery warehouse retrofitted its two 25-hp constant-speed compressors with inverter-driven 30-hp units. During summer peaks, energy consumption decreased by 25 %, and peak demand charges declined by 15 %.

LED Lighting and Controls:

A pharmaceutical cold storage facility replaced 80 fluorescent fixtures (32 W each) with LED equivalents (15 W each) and installed motion sensors. The measured lighting load dropped from 2.56 kW to 1.2 kW—a 53 % reduction—saving over $4,500/year in electricity.
